23 & A23

Sidewall or Ceiling

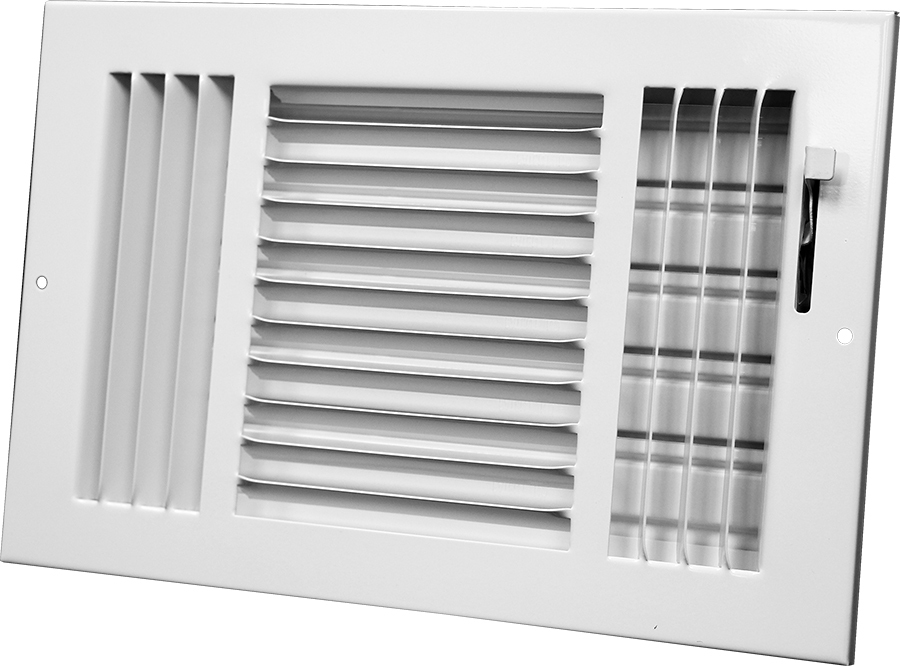

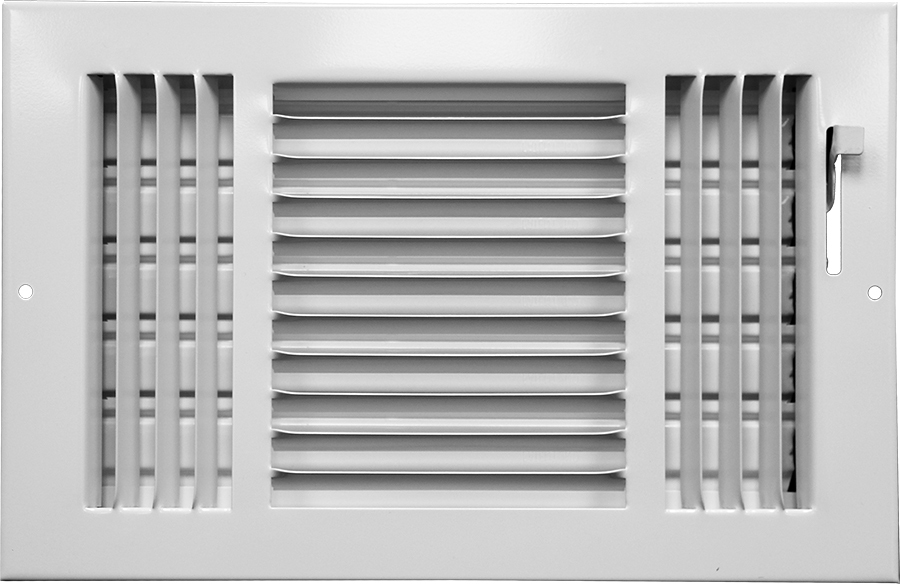

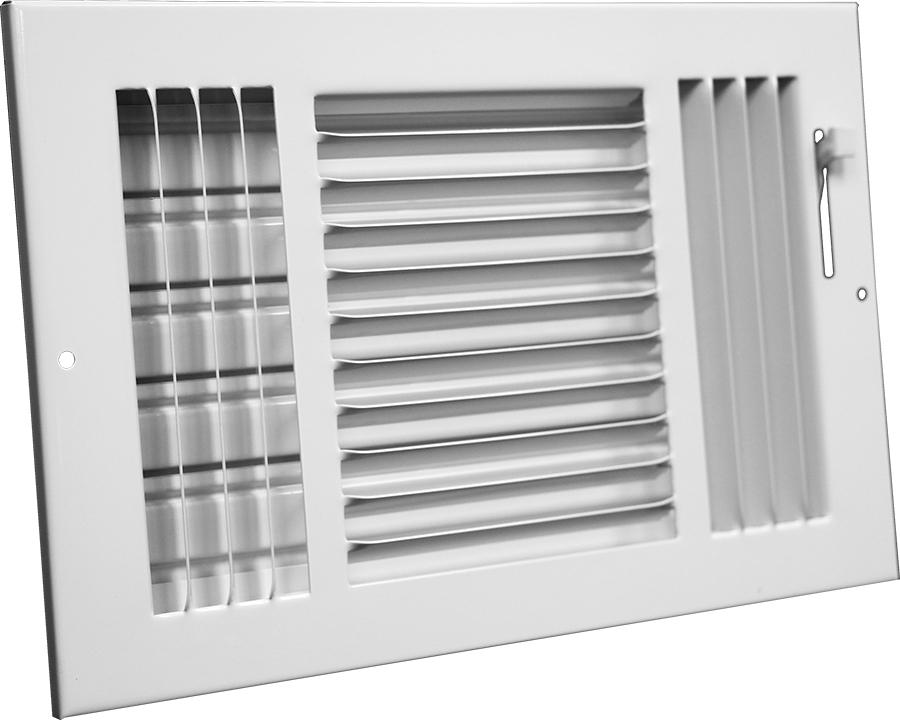

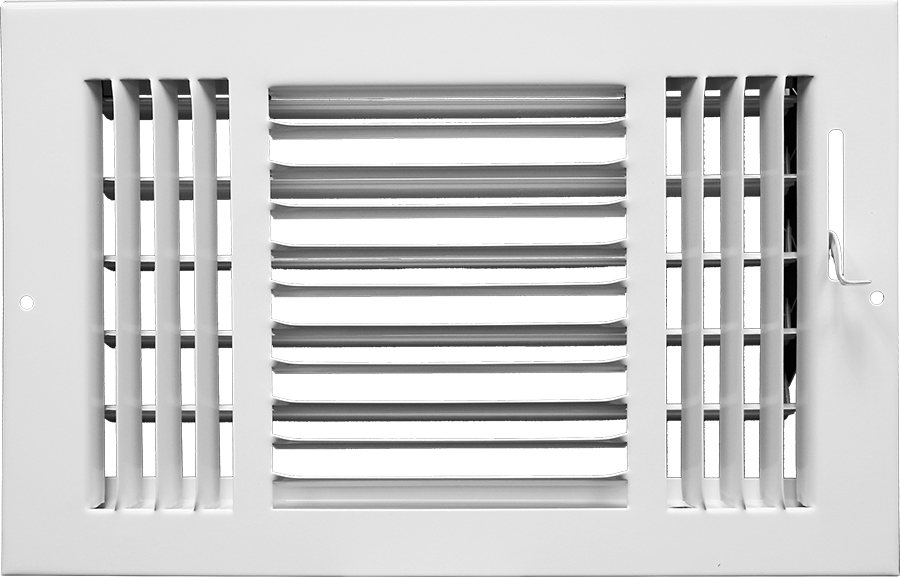

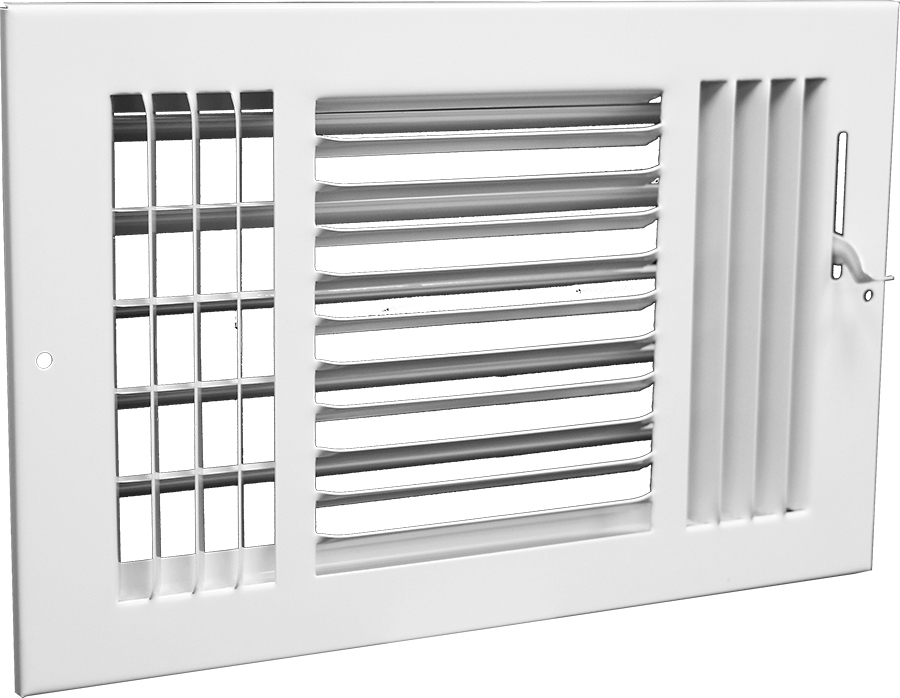

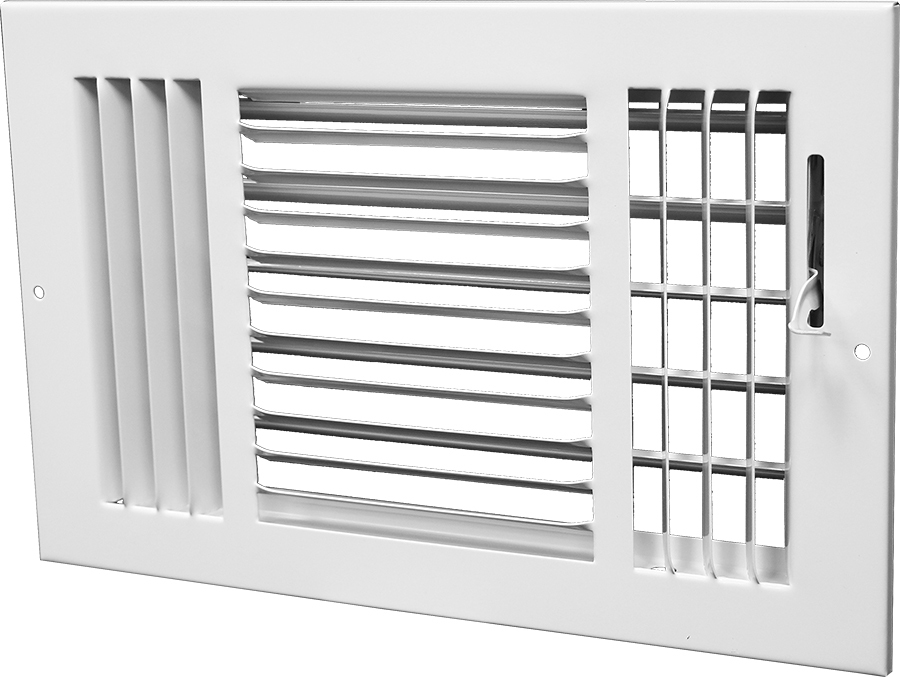

Sidewall/Ceiling Register (3-way)

Lanced face
Multi-shutter damper
3-way diffusion
1/2” spaced fins
Steel construction (23)
Aluminum construction (A23)
White finish
Made in the U.S.A.

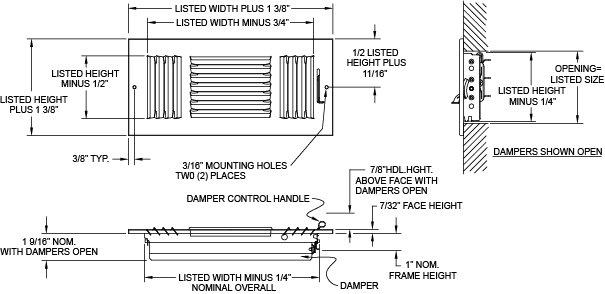

Appearance Note: Larger sizes of this product can require two or more damper boxes, with associated actuation levers through the product face.

Part #	Description	Ctn Qty	List Price Each
23W 0604	6" x 4" White	24	--
23W 0606	6" x 6" White	24	--
23W 0804	8" x 4" White	24	--
23W 0806	8" x 6" White	24	--
23W 0808	8" x 8" White	16	--
23W 1004	10" x 4" White	24	--
23W 1006	10" x 6" White	24	--
23W 1008	10" x 8" White	16	--
23W 1010	10" x 10" White	16	--
23W 1204	12" x 4" White	24	--
23W 1206	12" x 6" White	24	--
23W 1208	12" x 8" White	16	--
23W 1212	12" x 12" White	1	--
23W 1404	14" x 4" White	24	--
23W 1406	14" x 6" White	24	--
23W 1408	14" x 8" White	16	--
23W 1410	14" x 10" White	1	--
23W 1414	14" x 14" White	1	--
23W 1606	16" x 6" White	8	--
23W 1608	16" x 8" White	8	--


A23W 0808	8" x 8" White	16	--
A23W 1006	10" x 6" White	24	--
A23W 1406	14" x 6" White	24	--

Unit Size (in.)	Overall Size (in.)	Face Velocity	300	400	500	600	700	800	900	1000
		Pressure Loss	0.006	0.010	0.016	0.022	0.031	0.040	0.050	0.062
6 x 6
Ak .115"	7-3/8 x 7-3/8	Cfm	45	60	75	90	105	120	135	150
		Cfm A/B	35/5	48/6	57/9	68/11	79/13	92/14	103/16	114/18
		Throw A/B	4/3	6/3	8/4	8/6	10/5	12/6	12/8	16/8
8 x 4
Ak .13"	9-3/8 x 5-3/8	Cfm	39	52	65	78	91	104	117	130
		Cfm A/B	21/9	28/12	35/15	42/36	49/21	56/24	65/26	72/29
		Throw A/B	5/2	6/3	7/6	8/6	8/7	9/8	12/8	12/10
8 x 6
Ak .21"	9-3/8 x 7-3/8	Cfm	63	84	105	126	147	168	189	210
		Cfm A/B	33/15	46/19	57/24	68/29	79/34	90/39	101/44	112/49
		Throw A/B	6/2	7/3	8/4	8/6	9/7	12/8	14/7	16/8
8 x 8
Ak .29"	9-3/8 x 9-3/8	Cfm	87	116	145	174	203	232	261	290
		Cfm A/B	47/20	62/27	77/34	92/41	107/48	124/54	139/61	154/68
		Throw A/B	5/4	8/4	10/5	12/6	14/7	16/8	18/9	20/10
10 x 4
Ak .17"	11-3/8 x 5-3/8	Cfm	51	68	85	102	119	136	153	170
		Cfm A/B	27/12	36/16	45/20	54/24	63/28	74/31	83/35	92/39
		Throw A/B	5/3	7/3	8/4	8/6	10/7	12/8	14/7	16/9
10 x 6
Ak .27"	11-3/8 x 7-3/8	Cfm	81	108	135	162	189	216	243	270
		Cfm A/B	43/19	58/25	73/31	86/38	101/44	116/50	129/57	144/63
		Throw A/B	6/3	8/4	9/6	12/6	14/7	16/8	18/9	20/10
10 x 8
Ak .38"	11-3/8 x 9-3/8	Cfm	114	152	190	228	266	304	342	380
		Cfm A/B	60/27	80/36	100/45	120/54	140/63	160/72	180/81	200/90
		Throw A/B	6/4	9/4	12/6	12/8	14/9	18/9	20/10	21/12
10 x 10	11-3/8 x 11-	Cfm	138	184	230	276	322	368	414	460
		Cfm A/B	74/32	100/42	124/53	150/63	174/74	200/84	224/95	250/105
Ak .46	3/8
		Throw A/B	8/3	9/6	10/7	14/9	18/9	20/10	22/13	26/13
12 x 4
Ak .22"	13-3/8 x 5-3/8	Cfm	66	88	110	132	154	176	198	220
		Cfm A/B	34/16	46/21	58/26	68/32	80/37	92/42	104/47	114/53
		Throw A/B	5/3	8/3	9/4	10/5	12/6	14/7	16/8	18/9
12 x 6
Ak .34"	13-3/8 x 7-3/8	Cfm	102	136	170	204	238	272	306	340
		Cfm A/B	54/24	72/32	88/41	106/49	124/57	142/65	160/73	178/81
		Throw A/B	6/4	8/5	10/7	12/8	14/9	18/9	20/10	21/12
12 x 8
Ak .46"	13-3/8 x 9-3/8	Cfm	138	184	230	276	322	368	414	460
		Cfm A/B	72/33	96/44	120/55	144/66	168/77	192/88	216/99	240/110
		Throw A/B	8/4	10/5	12/6	14/9	16/10	20/10	23/11	24/13
12 x 12	13-3/8 x 13-	Cfm	207	276	345	414	483	552	621	690
		Cfm A/B	111/48	148/64	185/80	222/96	259/112	294/129	333/144	370/160
Ak .69	3/8
		Throw A/B	8/6	12/7	16/8	18/10	22/11	24/14	28/15	32/14
14 x 4
Ak .27"	15-3/8 x 5-3/8	Cfm	81	108	135	162	189	216	243	270
		Cfm A/B	33/24	44/32	57/39	68/47	79/55	90/63	101/76	112/79
		Throw A/B	6/3	8/4	8/6	11/6	13/6	15/7	17/8	19/10
14 x 6
Ak .37"	15-3/8 x 7-3/8	Cfm	111	148	185	222	259	296	333	370
		Cfm A/B	53/29	70/39	89/48	106/58	125/67	142/77	159/87	178/96
		Throw A/B	7/3	10/5	12/5	14/7	16/8	17/11	21/10	23/12
14 x 8
Ak .51"	15-3/8 x 9-3/8	Cfm	153	204	255	306	357	408	459	510
		Cfm A/B	73/40	98/53	123/66	146/80	171/93	194/107	219/120	242/134
		Throw A/B	8/6	12/7	16/8	19/9	22/11	26/13	29/15	32/16
14 x 14	15-3/8 x 15-	Cfm	267	356	445	534	623	712	801	890
		Cfm A/B	131/68	174/91	217/114	260/137	303/160	348/182	391/205	434/228
Ak .89	3/8
		Throw A/B	12/6	16/8	22/11	26/13	30/15	34/18	38/20	43/21
16 x 6
Ak .47"	17-3/8 x 7-3/8	Cfm	141	188	235	282	329	376	423	470
		Cfm A/B	63/39	84/52	105/65	126/78	147/91	168/104	189/117	210/130
		Throw A/B	6/3	9/5	10/6	12/8	16/7	18/8	19/9	22/11
16 x 8
Ak .64"	17-3/8 x 9-3/8	Cfm	192	256	320	384	448	512	576	640
		Cfm A/B	86/53	114/71	144/88	172/106	202/123	230/141	258/159	286/177
		Throw A/B	8/5	12/6	16/7	19/9	20/11	24/12	26/14	30/15
16 x 16	17-3/8 x 17-	Cfm	387	516	645	774	903	1032	1161	1290
		Cfm A/B	177/105	236/140	295/175	354/210	413/245	470/281	529/316	588/351
Ak 1.29	3/8
		Throw A/B	12/8	18/9	25/12	30/15	34/17	38/20	42/22	48/24
