AFBFG
Aluminum

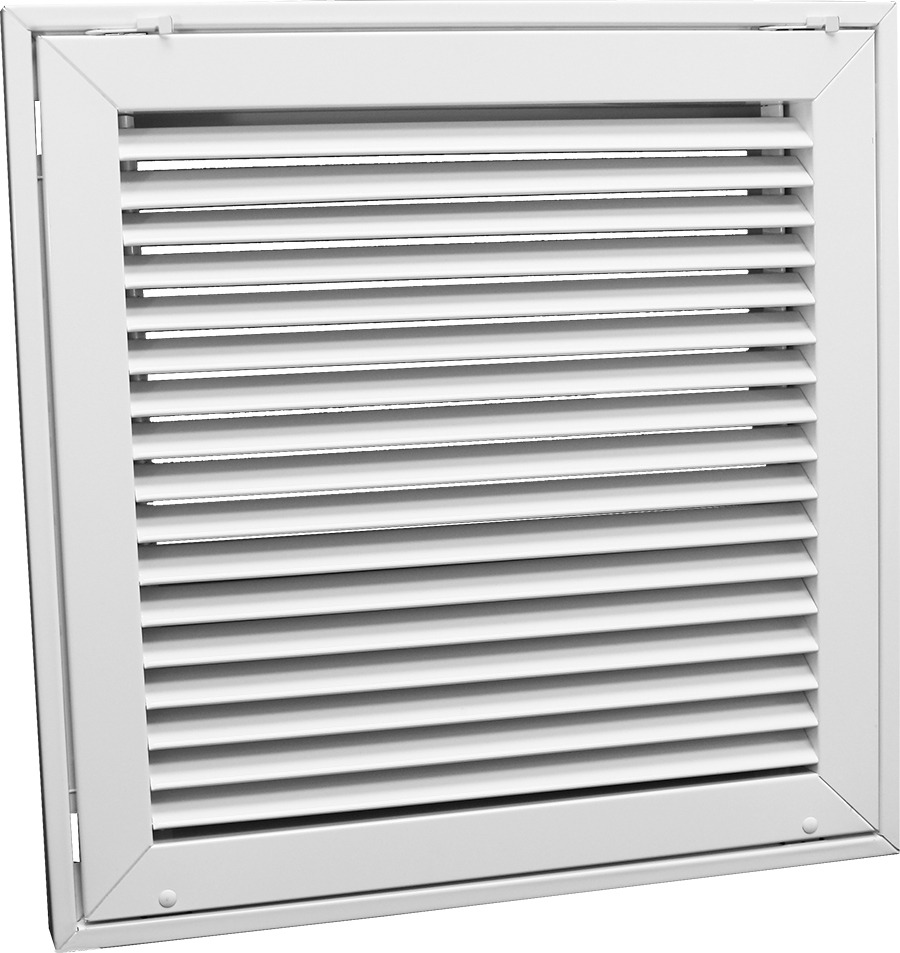

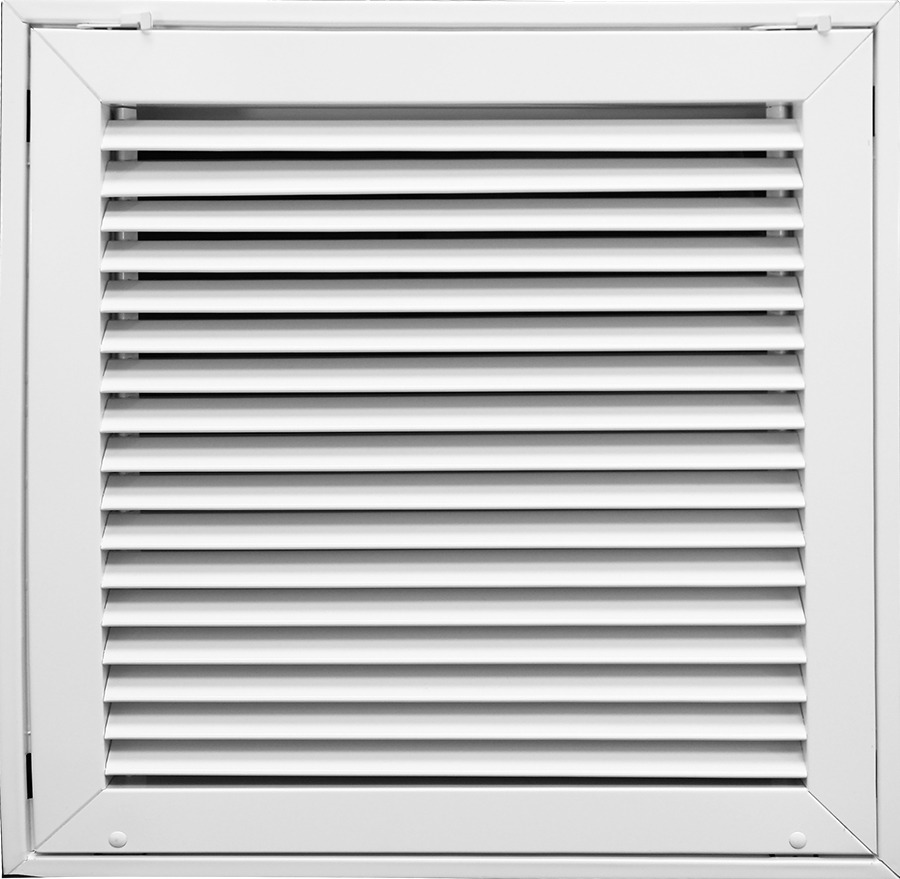

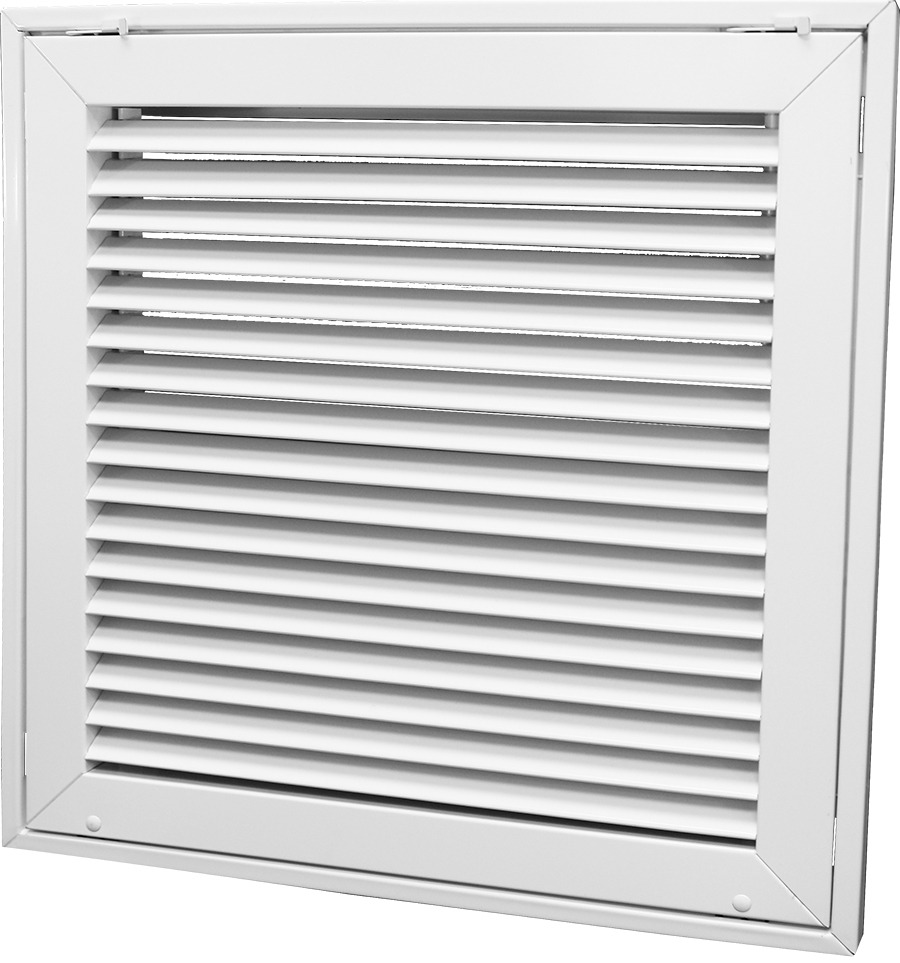

Fixed Bar Filter Grille
- Fixed, horizontal, roll-form face bars

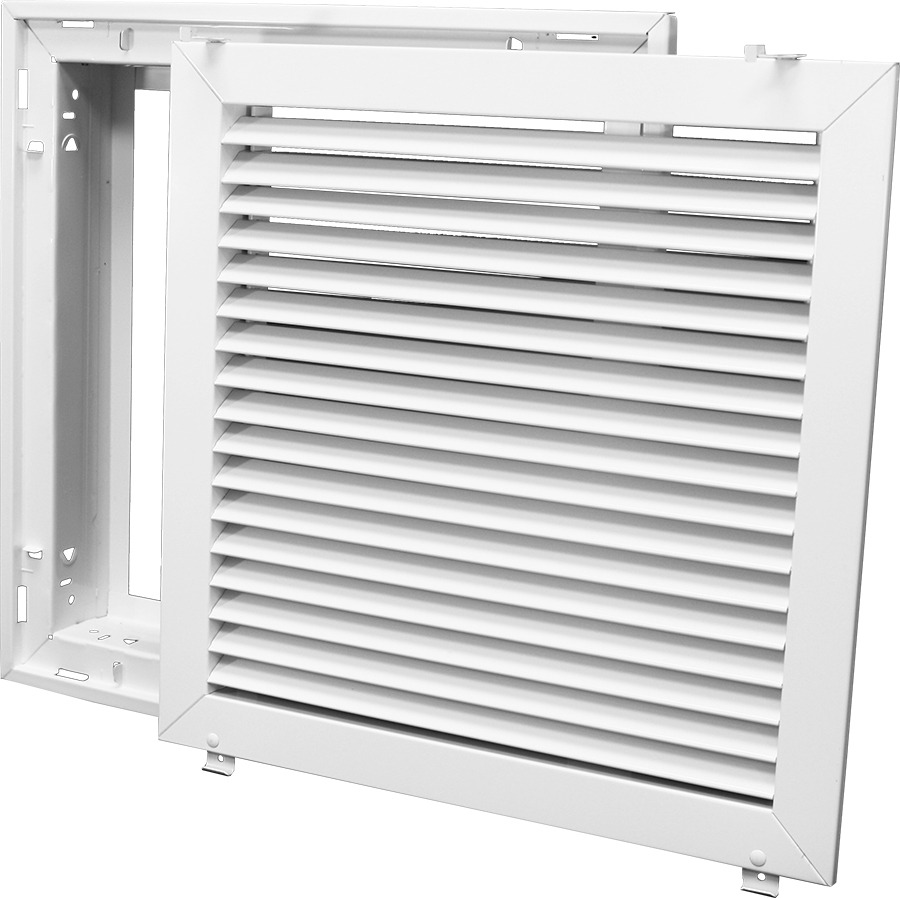

- Flush, removeable face
- Concealed hinges and latches
- Bars fixed at 60° deflection
- Uses 1” filter (not included)
- Commercial grade aluminum construction
- White finish
- Made in the U.S.A.
| Part # | Description | Ctn Qty | List Price Each |
| AFBFGW 1212 | 12" x 12" White | 1 | -- |
| AFBFGW 1220 | 12" x 20" White | 1 | -- |
| AFBFGW 1224 | 12" X 24" White | 1 | -- |
| AFBFGW 1420 | 14" x 20" White | 1 | -- |
| AFBFGW 1424 | 14" x 24" White | 1 | -- |
| AFBFGW 1425 | 14" x 25" White | 1 | -- |
| AFBFGW 1430 | 14" x 30" White | 1 | -- |
| AFBFGW 1620 | 16" x 20" White | 1 | -- |
| AFBFGW 1624 | 16" x 24" White | 1 | -- |
| AFBFGW 1625 | 16" x 25" White | 1 | -- |
| AFBFGW 1630 | 16" x 30" White | 1 | -- |
| AFBFGW 1818 | 18" x 18" White | 1 | -- |
| AFBFGW 1824 | 18" x 24" White | 1 | -- |
| AFBFGW 1830 | 18" x 30" White | 1 | -- |
| AFBFGW 2018 | 20" x 18" White | 1 | -- |
| AFBFGW 2020 | 20" x 20" White | 1 | -- |
| AFBFGW 2024 | 20" x 24" White | 1 | -- |
| AFBFGW 2025 | 20" x 25" White | 1 | -- |
| AFBFGW 2030 | 20" x 30" White | 1 | -- |
| AFBFGW 2412 | 24" x 12" White | 1 | -- |
| AFBFGW 2424 | 24" x 24" White | 1 | -- |
| AFBFGW 2430 | 24" x 30" White | 1 | -- |
| AFBFGW 2436 | `24" x 36" White | 1 | -- |
| AFBFGW 2448 | 24" x 48" White | 1 | -- |
| AFBFGW 2516 | 25" x 16" White | 1 | -- |
| AFBFGW 2520 | 25" x 20" White | 1 | -- |
| AFBFGW 2525 | 25" x 25" White | 1 | -- |
| AFBFGW 3020 | 30" x 20" White | 1 | -- |
| AFBFGW 3024 | 30" x 24" White | 1 | -- |
| AFBFGW 3030 | 30" x 30" White | 1 | -- |
| AFBFGW 3624 | 36" x 24" White | 1 | -- |
