FBG60

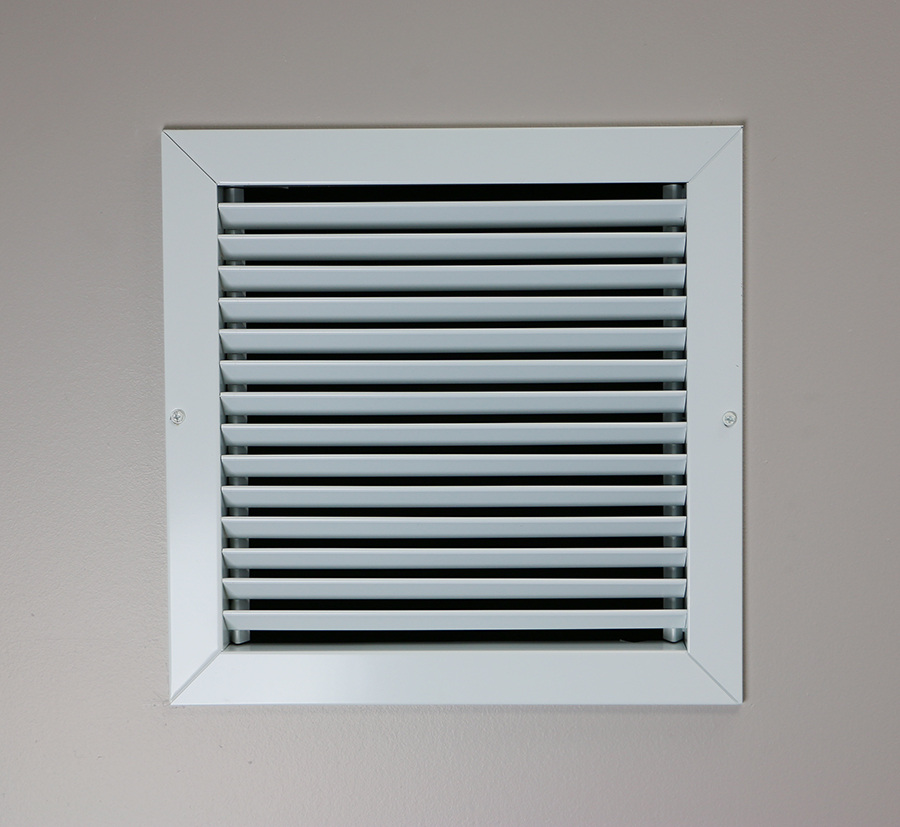

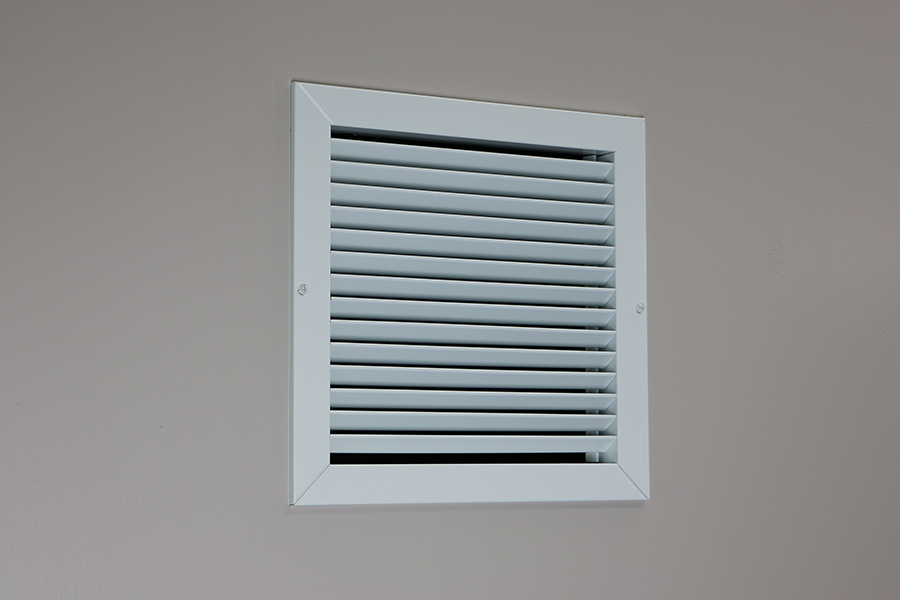

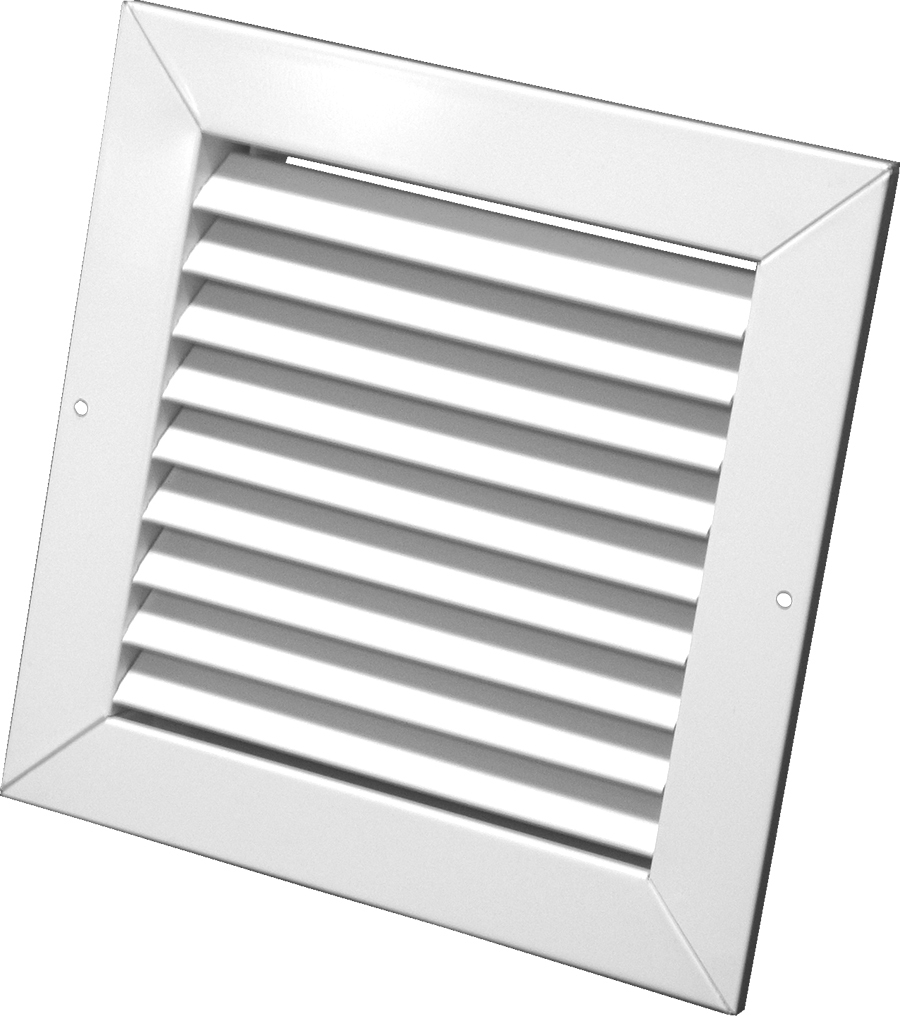

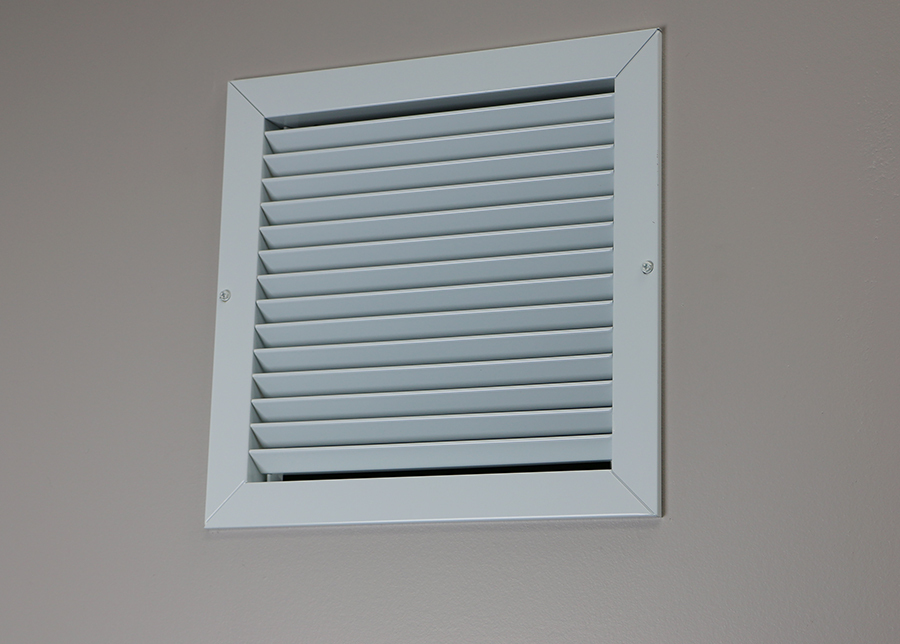

FBG60
Steel
Fixed Bar Grille, 60°
Designed for Supply or Return Air usage

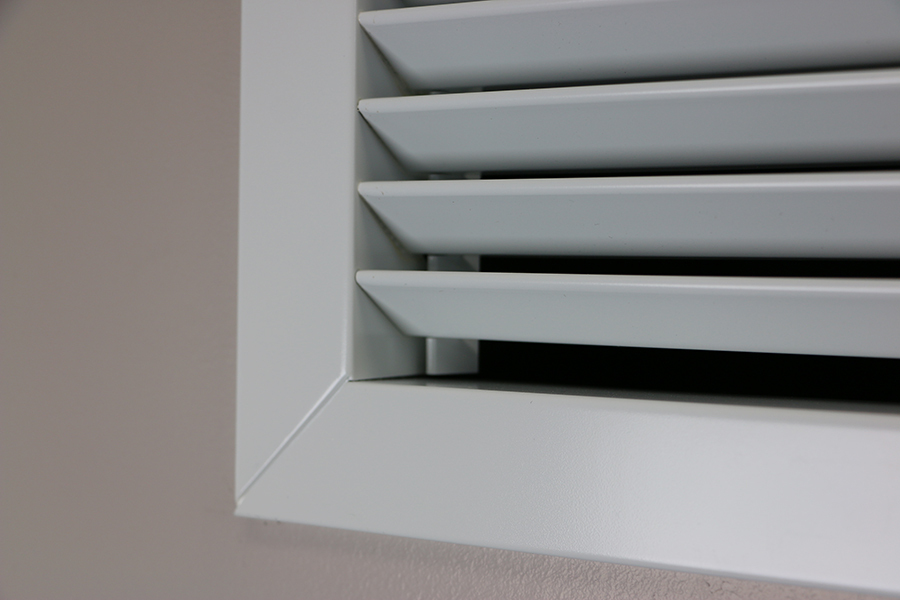

Fixed, horizontal, roll-form face bars
Bars fixed at 60° deflection
Commercial grade steel construction
White finish
Made in the U.S.A.
Series FBG60 Submittal
Product Details

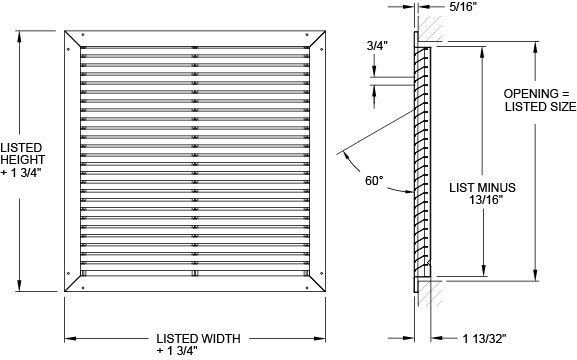

Dimensional Drawings
Performance
Videos
Design Resources
Videos & Manuals
Product Details
Dimensional Drawings
Performance
Videos
Design Resources
Videos & Manuals
Part #
Description
Ctn Qty
List Price Each
FBG60W 1006
10" x 6" White
10
--
FBG60W 1212
12" x 12" White
10
--
FBG60W 1420
14" x 20" White
3
--
FBG60W 3612
36" x 12" White
1
--
Unit Size (in.)
Overall Size (in.)
Face Velocity
400
600
800
1000
6 x 6
Ak .00"
7¾ x 7¾
Cfm
35
53
71
89
Pt
0.005
0.025
0.027
0.068
8 x 8
Ak .20"
9¾ x 9¾
Cfm
78
117
156
195
Pt
0.006
0.026
0.028
0.069
10 x 6
Ak .17"
11¾ x 7¾
Cfm
69
103
138
172
Pt
0.006
0.025
0.027
0.068
10 x 10
Ak .34"
11¾ x 11¾
Cfm
138
206
275
344
Pt
0.008
0.026
0.028
0.069
12 x 6
Ak .21"
13¾ x 7¾
Cfm
85
128
171
214
Pt
0.011
0.026
0.046
0.075
12 x 8
Ak .32"
13¾ x 9¾
Cfm
128
192
256
320
Pt
0.014
0.025
0.027
0.068
12 x 12
Ak .50"
13¾ x 13 ¾
Cfm
199
299
399
498
Pt
0.009
0.038
0.040
0.109
14 x 6
Ak .26"
15¾ x 7¾
Cfm
102
153
204
255
Pt
0.011
0.041
0.045
0.114
14 x 8
Ak .38"
15¾ x 9¾
Cfm
153
230
306
383
Pt
0.010
0.039
0.042
0.109
14 x 14
Ak .72"
15¾ x 15¾
Cfm
289
434
578
723
Pt
0.010
0.039
0.042
0.083
16 x 10
Ak .59"
17¾ x 11¾
Cfm
238
356
475
594
Pt
0.015
0.026
0.028
0.069
16 x 16
Ak .99"
17¾ x 17¾
Cfm
396
594
792
990
Pt
0.011
0.041
0.045
0.086
18 x 18
Ak .85"
19¾ x 19¾
Cfm
482
723
964
1205
Pt
0.007
0.034
0.033
0.052
20 x 10
Ak .74"
21¾ x 11¾
Cfm
296
445
593
741
Pt
0.015
0.026
0.028
0.069
20 x 12
Ak .86"
21¾ x13¾
Cfm
346
519
691
864
Pt
0.016
0.027
0.029
0.070
20 x 14
Ak 1.05"
21¾ x 15¾
Cfm
420
630
840
1050
Pt
0.012
0.040
0.041
0.082
20 x 20
Ak 1.54"
21¾ x 21¾
Cfm
617
926
1235
1543
Pt
0.014
0.033
0.030
0.050
24 x 10
Ak .91"
25¾ x 11¾
Cfm
363
545
726
908
Pt
0.016
0.027
0.029
0.070
24 x 12
Ak 1.06"
25¾ x 13¾
Cfm
424
635
847
1059
Pt
0.009
0.038
0.041
0.082
24 x 14
Ak 1.29"
25¾ x 15¾
Cfm
514
771
1029
1286
Pt
0.018
0.029
0.031
0.072
24 x 24
Ak 2.27"
25¾ x 25¾
Cfm
908
1361
1815
2269
Pt
0.007
0.039
0.042
0.046
30 x 10
Ak 1.16"
31¾ x 11¾
Cfm
463
695
926
1158
Pt
0.018
0.029
0.031
0.072
30 x 12
Ak 1.35"
31¾ x 12¾
Cfm
540
810
1080
1350
Pt
0.026
0.034
0.032
0.095
30 x 14
Ak 1.64"
31¾ x 15¾
Cfm
656
984
1312
1640
Pt
0.027
0.034
0.033
0.074
30 x 20
Ak 2.41"
31¾ x 21¾
Cfm
965
1447
1929
2411
Pt
0.029
0.035
0.037
0.078
