24

Sidewall or Ceiling

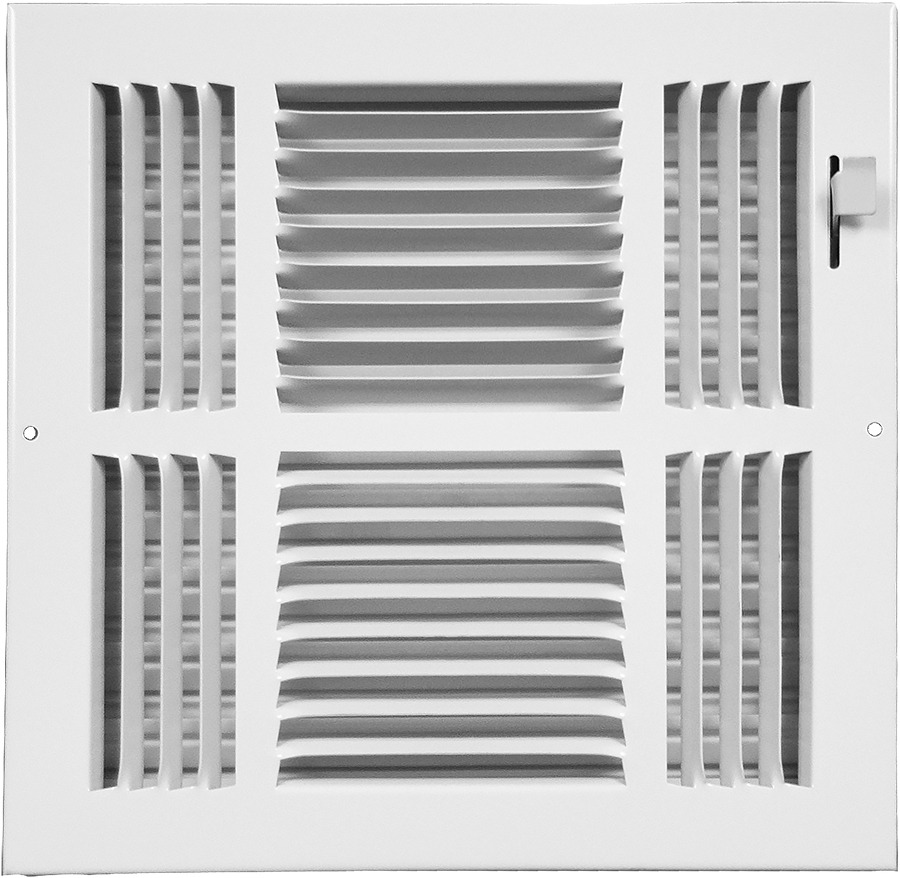

Sidewall/Ceiling Register (4-way)

Lanced face
Multi-shutter damper
4-way diffusion
1/2” spaced fins
Steel construction (24)
White finish
Made in the U.S.A.

Catalog Page Submittal SheetVideos

Part #
24W 0606
Description	6" x 6" White
Ctn Qty	24
List Price Each	--
24W 0808
Description	8" x 8" White
Ctn Qty	16
List Price Each	--
24W 1010
Description	10" x 10" White
Ctn Qty	16
List Price Each	--
24W 1212
Description	12" x 12" White
Ctn Qty	1
List Price Each	--
24W 1414
Description	14" x 14" White
Ctn Qty	1
List Price Each	--

Part #	Description	Ctn Qty	List Price Each
24W 0606	6" x 6" White	24	--
24W 0808	8" x 8" White	16	--
24W 1010	10" x 10" White	16	--
24W 1212	12" x 12" White	1	--
24W 1414	14" x 14" White	1	--

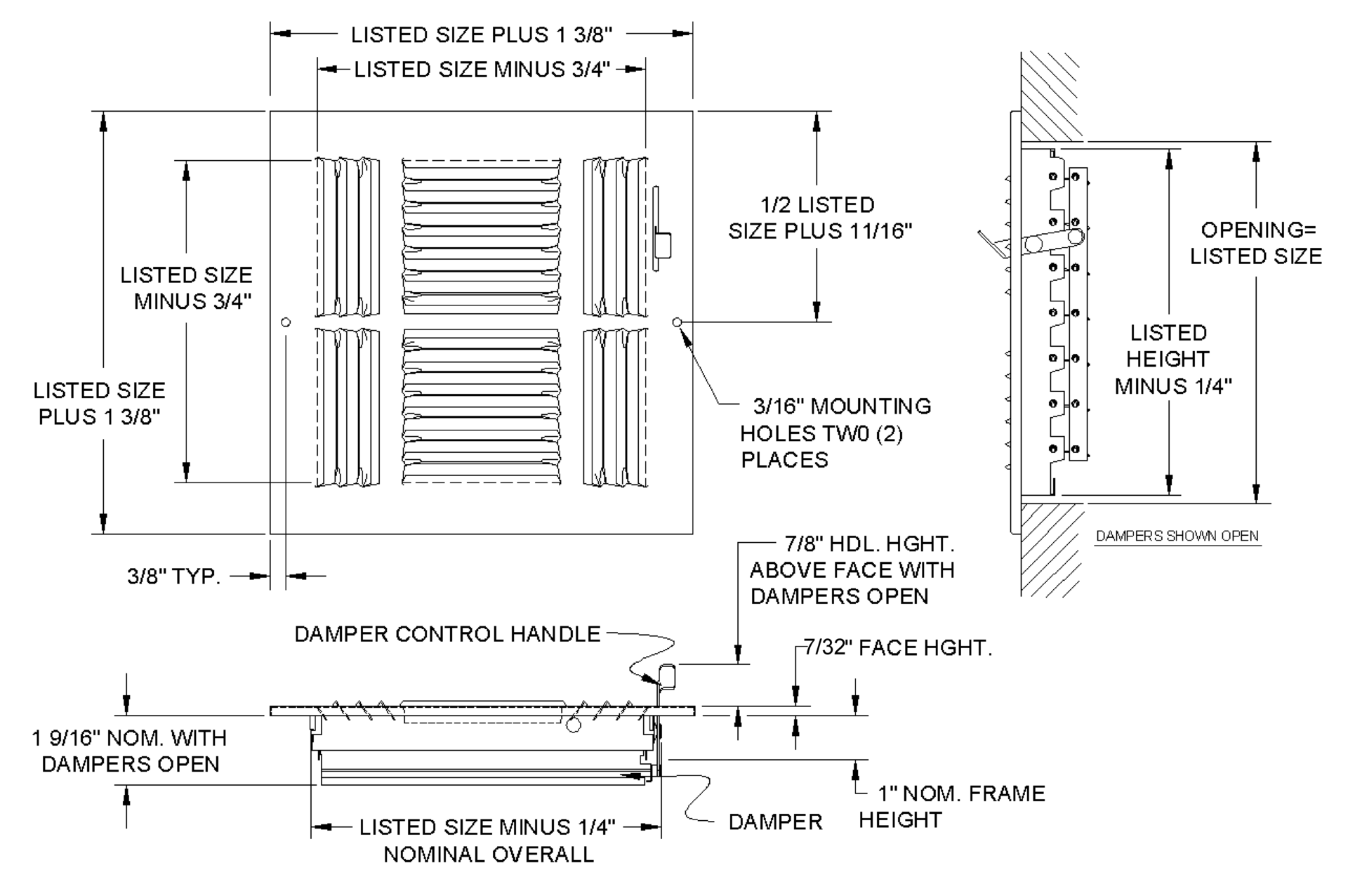

Unit Size

Overall Size
FACE VELOCITY	PRESSURE LOSS
300	0.006
400	0.01
500	0.016
600	0.022
700	0.031
800	0.04
900	0.05
1000	0.062
6x6 Ak .13
Overall Size	7 3/8 x 7 3/8
FACE VELOCITY	Total Cfm Cfm A/B Throw A/B
300	39
400	52
500	65
600	78
700	91
800	104
900	117
1000	130

Overall Size
FACE VELOCITY
300	15/4
400	20/6
500	24/8
600	30/9
700	34/11
800	40/12
900	44/14
1000	50/15

Overall Size
FACE VELOCITY
300	3-Mar
400	4-May
500	5-Jun
600	6-Aug
700	7-Sep
800	8-Oct
900	10-Dec
1000	13/11
8x8 Ak .26
Overall Size	9 3/8 x 9 3/8
FACE VELOCITY	Total Cfm Cfm A/B Throw A/B
300	78
400	104
500	130
600	156
700	182
800	208
900	234
1000	260

Overall Size
FACE VELOCITY
300	21/18
400	28/24
500	35/30
600	42/36
700	49/42
800	56/48
900	63/54
1000	71/61

Overall Size
FACE VELOCITY
300	4-Apr
400	6-Jul
500	8-Sep
600	9-Nov
700	13/11
800	15/12
900	16/13
1000	18/15
10x10 Ak .44
Overall Size	11 3/8 x 11 3/8
FACE VELOCITY	Total Cfm Cfm A/B Throw A/B
300	132
400	176
500	220
600	264
700	308
800	352
900	396
1000	440

Overall Size
FACE VELOCITY
300	35/31
400	46/42
500	58/52
600	70/62
700	82/72
800	93/83
900	106/94
1000	118/105

Overall Size
FACE VELOCITY
300	5-Jul
400	7-Sep
500	9-Dec
600	14/11
700	17/14
800	20/16
900	22/18
1000	25/21
12x12 Ak .68
Overall Size	13 3/8 x 13 3/8
FACE VELOCITY	Total Cfm Cfm A/B Throw A/B
300	204
400	272
500	340
600	408
700	476
800	544
900	612
1000	680

Overall Size
FACE VELOCITY
300	54/48
400	71/65
500	89/81
600	107/97
700	125/113
800	143/129
900	158/144
1000	176/160

Overall Size
FACE VELOCITY
300	7-Sep
400	9-Dec
500	15/12
600	18/14
700	21/17
800	24/19
900	28/22
1000	29/24
14x14 Ak .95
Overall Size	15 3/8 x 15 3/8
FACE VELOCITY	Total Cfm Cfm A/B Throw A/B
300	284
400	380
500	474
600	570
700	664
800	760
900	855
1000	950

Overall Size
FACE VELOCITY
300	63/79
400	84/106
500	104/133
600	126/159
700	146/186
800	167/213
900	187/239
1000	208/266

Overall Size
FACE VELOCITY
300	8-Sep
400	11-Dec
500	15/13
600	18/16
700	21/19
800	25/21
900	28/24
1000	31/27
16x16 Ak 1.27
Overall Size	17 3/8 x 17 3/8
FACE VELOCITY	Total Cfm Cfm A/B Throw A/B
300	380
400	508
500	634
600	762
700	888
800	1016
900	1143
1000	1270

Overall Size
FACE VELOCITY
300	85/105
400	113/139
500	142/175
600	171/210
700	199/245
800	228/280
900	256/315
1000	284/350

Overall Size
FACE VELOCITY
300	9-Nov
400	14/12
500	18/15
600	22/18
700	26/21
800	29/24
900	33/26
1000	36/30

Unit Size	Overall Size	FACE VELOCITY	300	400	500	600	700	800	900	1000
		PRESSURE LOSS	0.006	0.01	0.016	0.022	0.031	0.04	0.05	0.062
6x6 Ak .13	7 3/8 x 7 3/8	Total Cfm Cfm A/B Throw A/B	39	52	65	78	91	104	117	130
			15/4	20/6	24/8	30/9	34/11	40/12	44/14	50/15
			3-Mar	4-May	5-Jun	6-Aug	7-Sep	8-Oct	10-Dec	13/11
8x8 Ak .26	9 3/8 x 9 3/8	Total Cfm Cfm A/B Throw A/B	78	104	130	156	182	208	234	260
			21/18	28/24	35/30	42/36	49/42	56/48	63/54	71/61
			4-Apr	6-Jul	8-Sep	9-Nov	13/11	15/12	16/13	18/15
10x10 Ak .44	11 3/8 x 11 3/8	Total Cfm Cfm A/B Throw A/B	132	176	220	264	308	352	396	440
			35/31	46/42	58/52	70/62	82/72	93/83	106/94	118/105
			5-Jul	7-Sep	9-Dec	14/11	17/14	20/16	22/18	25/21
12x12 Ak .68	13 3/8 x 13 3/8	Total Cfm Cfm A/B Throw A/B	204	272	340	408	476	544	612	680
			54/48	71/65	89/81	107/97	125/113	143/129	158/144	176/160
			7-Sep	9-Dec	15/12	18/14	21/17	24/19	28/22	29/24
14x14 Ak .95	15 3/8 x 15 3/8	Total Cfm Cfm A/B Throw A/B	284	380	474	570	664	760	855	950
			63/79	84/106	104/133	126/159	146/186	167/213	187/239	208/266
			8-Sep	11-Dec	15/13	18/16	21/19	25/21	28/24	31/27
16x16 Ak 1.27	17 3/8 x 17 3/8	Total Cfm Cfm A/B Throw A/B	380	508	634	762	888	1016	1143	1270
			85/105	113/139	142/175	171/210	199/245	228/280	256/315	284/350
			9-Nov	14/12	18/15	22/18	26/21	29/24	33/26	36/30
