VHG

Steel

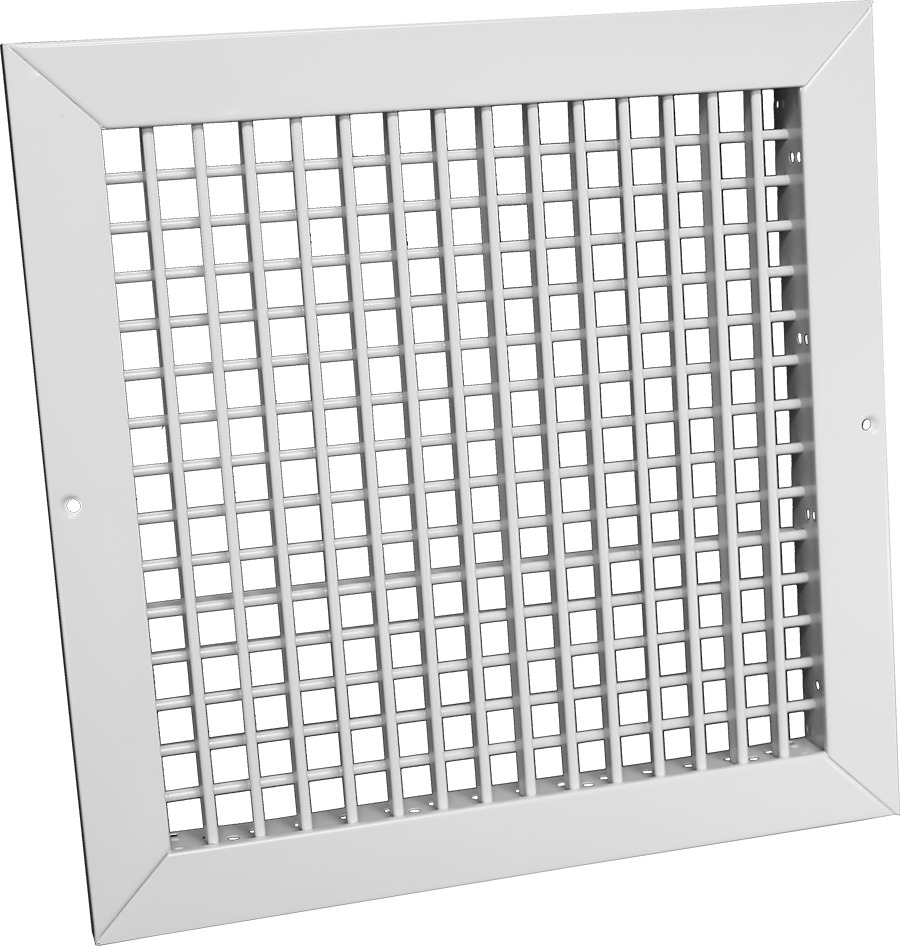

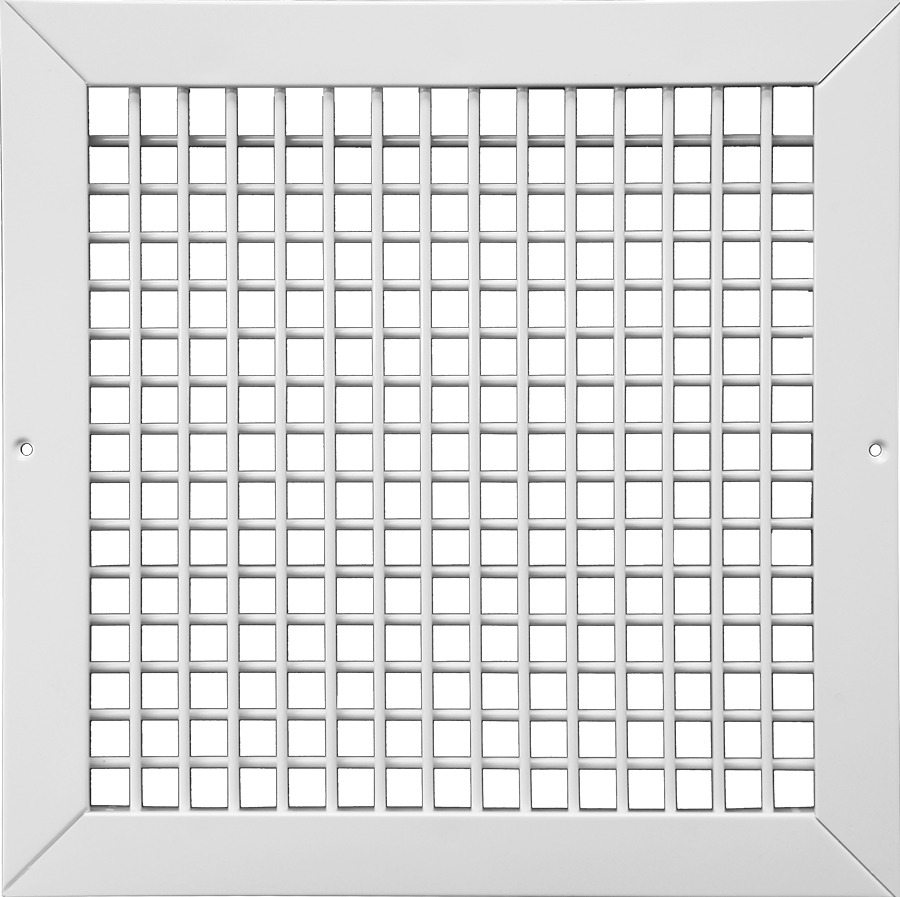

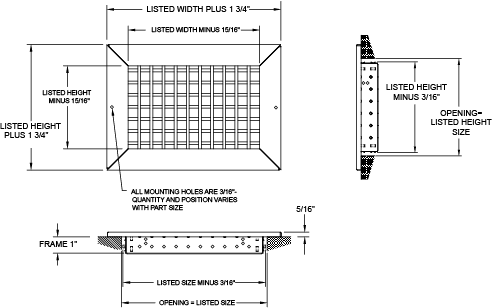

Sidewall/Ceiling Supply Grille

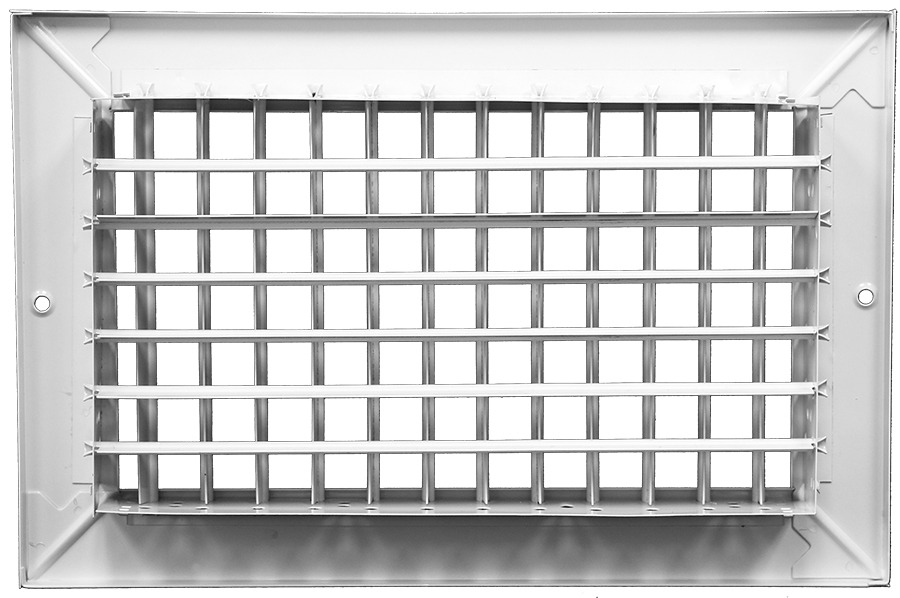

Double deflection
Adjustable, vertical, roll-form face bars
Adjustable, horizontal, roll-form rear bars
3/4" bar spacing for easy adjustment
Steel construction (VHG)
White finish
Made in the U.S.A.

Appearance Note: Any models with a dimension larger than 16” require two or more damper boxes and associated reinforcement face bars.

Part #	Description	Ctn Qty	List Price Each

VHGW 0606	6" x 6" White	6	--
VHGW 0806	8" x 6" White	6	--
VHGW 1006	10" x 6" White	6	--
VHGW 1206	12" x 6" White	6	--
VHGW 1406	14" x 6" White	6	--
VHGW 1616	16" x 16" White	3	--

Unit	Face Velocity	300	400	500	600	700	800	900	1000
Size	Pressure Loss	.006	.010	.016	.022	.031	.040	.050	.062
6x4	Cfm	31	42	52	63	73	83	94	104
Ak .104	Throw	3	4	5	7	8	9	10	11
6x6	Cfm	50	67	83	100	117	133	150	167
Ak .167	Throw	5	6	7	9	10	12	13	15
8x4	Cfm	42	56	69	83	97	111	125	139
Ak .139	Throw	4	5	7	8	9	11	12	13
8x6	Cfm	69	92	115	138	160	183	206	229
Ak .229	Throw	5	7	8	10	12	14	15	17
8x8	Cfm	96	128	160	192	224	256	288	319
Ak .319	Throw	6	7	9	11	13	15	17	19
10x4	Cfm	54	72	90	108	126	144	163	181
Ak .181	Throw	5	6	8	9	11	12	13	14
10x6	Cfm	90	119	149	179	209	239	269	299
Ak .299	Throw	6	8	9	11	13	15	17	19
10x8	Cfm	121	161	201	242	282	322	363	403
Ak .403	Throw	7	8	10	12	14	16	17	21
10x10	Cfm	156	208	260	313	365	417	469	521
Ak .521	Throw	7	9	12	14	16	18	20	23
12x4	Cfm	65	86	108	129	151	172	194	215
Ak .215	Throw	5	7	8	10	12	14	15	17
12x6	Cfm	108	144	181	217	253	289	325	361
Ak .361	Throw	7	8	10	12	15	17	19	21
12x8	Cfm	148	197	247	296	345	394	444	493
Ak .493	Throw	7	9	11	13	18	17	19	22
12x10	Cfm	190	253	316	379	442	506	569	632
Ak .632	Throw	8	11	13	16	19	22	25	28
12x12	Cfm	229	306	382	458	535	611	688	764
Ak .764	Throw	9	11	14	17	20	22	25	29
14x4	Cfm	77	103	128	154	180	206	231	257
Ak .257	Throw	5	7	9	11	13	15	17	18
14x6	Cfm	127	169	212	254	297	339	381	424
Ak .424	Throw	7	8	11	13	16	18	20	23
14x8	Cfm	173	231	288	346	403	461	519	576
Ak .576	Throw	8	9	12	14	17	19	21	24
14x10	Cfm	223	297	372	446	520	594	669	743
Ak .743	Throw	9	11	13	16	19	22	25	28
14x12	Cfm	269	358	448	538	627	717	806	896
Ak .896	Throw	9	12	14	18	22	24	27	31
16x4	Cfm	83	111	139	167	194	222	250	278
Ak .278	Throw	7	10	12	15	17	20	22	25
16x6	Cfm	135	181	226	271	316	361	406	451
Ak .451	Throw	7	10	12	15	17	20	22	25
16x8	Cfm	185	247	309	371	433	494	556	618
Ak .618	Throw	8	10	13	15	18	20	22	25
16x10	Cfm	240	319	399	479	559	639	719	799
Ak .799	Throw	7	10	12	15	17	20	22	25
16x12	Cfm	290	386	483	579	676	772	869	965
Ak .965	Throw	7	10	12	15	17	20	22	25
18x4	Cfm	94	125	156	188	219	250	281	313
Ak .313	Throw	7	10	12	15	17	20	22	25
18x6	Cfm	156	208	260	313	365	417	469	521
Ak .521	Throw	8	11	13	16	19	22	24	27
18x8	Cfm	213	283	354	425	496	567	638	708
Ak .708	Throw	9	11	13	16	19	22	25	28
18x10	Cfm	273	364	455	546	637	728	819	910
Ak .910	Throw	7	10	12	15	17	20	22	25
18x12	Cfm	331	442	552	663	773	883	994	1104
Ak 1.104	Throw	7	10	12	15	17	20	22	25
20x4	Cfm	106	142	177	213	248	283	319	354
Ak .354	Throw	7	10	12	15	17	20	22	25
20x6	Cfm	175	233	292	350	408	467	525	583
Ak .583	Throw	8	11	14	16	20	23	25	28
20x8	Cfm	238	317	396	475	554	633	713	792
Ak .792	Throw	9	12	15	18	21	23	26	29
20x10	Cfm	306	408	510	613	715	817	919	1021
Ak 1.021	Throw	7	10	12	15	17	20	22	25
20x12	Cfm	371	494	618	742	865	989	1113	1236
Ak 1.236	Throw	7	10	12	15	17	20	22	25
24x4	Cfm	129	172	215	258	301	344	388	431
Ak .431	Throw	7	10	12	15	17	20	22	25
24x6	Cfm	190	253	316	379	442	506	569	632
Ak .632	Throw	9	12	15	18	21	23	26	29
24x8	Cfm	292	389	486	583	681	778	875	972
Ak .972	Throw	10	13	17	19	23	25	28	31
24x10	Cfm	373	497	622	746	870	994	1119	1243
Ak 1.243	Throw	7	10	12	15	17	20	22	25
24x12	Cfm	452	603	753	904	1055	1206	1356	1507
Ak 1.507	Throw	7	10	12	15	17	20	22	25
Terminal Velocity of 75 fpm



NC 35
